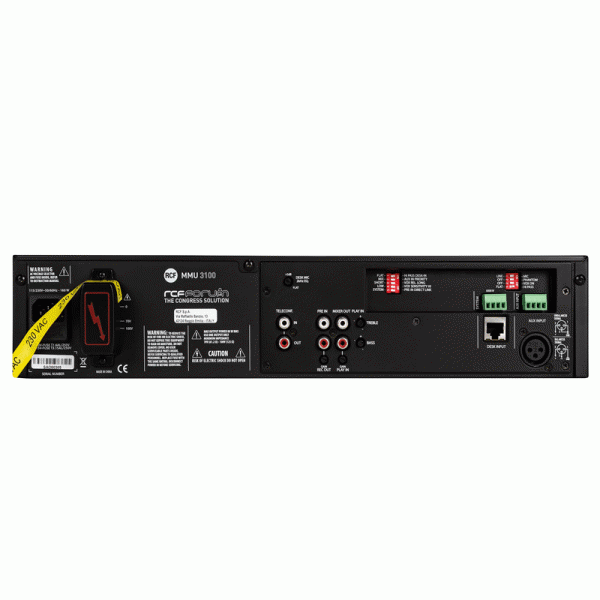

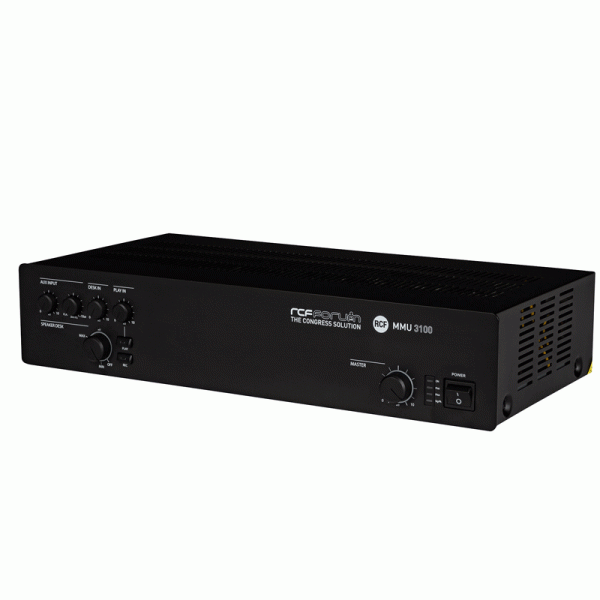

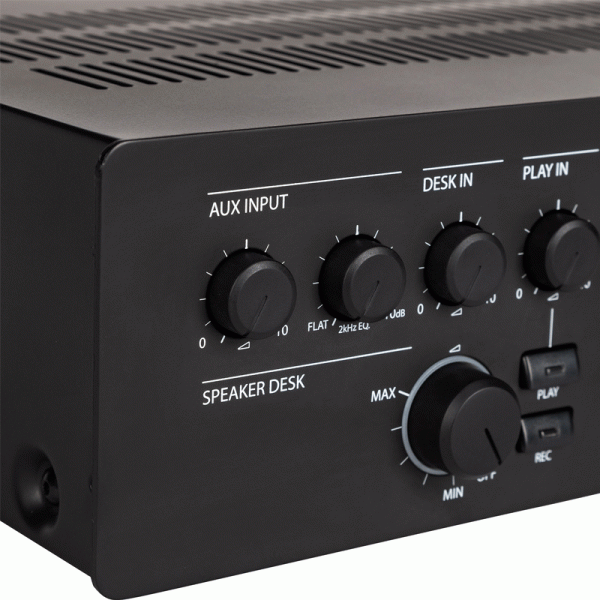

MASTER UNIT KONFERENCIJSKI RCF MMU 3100

1,297.00 KM

Profesionalna centralna jedinica konferencijskog sistema sa pojačivačem 80W/100V sa opcijom spajanja max. 80 mikrofonskih setova.

  • Opis
  • Brand

Opis

System specifications
BUILT-IN POWER AMPLIFIER:
Yes
MAX NUMBER OF CONSOLE:
80
NUMBER OF CONSOLE BUSES:
1
MAX NUMBER OF UNITS CONNECTABLE:
2
Amplifier specifications
AMPLIFIER CLASS:
D
NUMBER OF CHANNELS:
1
POWER OUTPUT (@ 100 V):
160 W RMS
FREQUENCY RESPONSE (-3DB):
50 Hz ÷ 18 kHz
SIGNAL/NOISE RATE (”A” WEIGHTED):
>80 dB dB
DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<1 %%
Input section
TOTAL NUMBER OF INPUTS:
7
BALANCED:
3
UNBALANCED:
5
MONO:
7
LINE INPUTS:
2
LINE CONNECTORS:
RCA
MIC+LINE INPUTS:
4
MIC+LINE CONNECTORS:
Euroblock, XLR
MIC+LINE PHANTOM:
32 V DC
VOX: (MIC+LINE):
Yes
PAGING INPUTS:
1
PAGING CONNECTORS:
RJ45
PAGING COMMAND:
Contact
GENERAL PURPOSE INPUTS (GPI):
1
Output section
SIGNAL OUTPUT NUMBER:
3
SIGNAL OUTPUT CONNECTORS:
RCA
POWER OUTPUT CONNECTORS:
Euroblock
Processing
TONE CONTROLS:
Yes
HIGH-PASS FILTER:
0 Hz
Controls
CONFIGURATION:
DIP switch, Front panel
Protections
COOLING:
Convection
SHORT CIRCUIT:
Yes
THERMAL:
Yes
DC DELAY:
Yes
FUSES:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60HzV ~ Hz
VOLTAGE SELECTION:
Internal
POWER CONSUMPTION:
350 W
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal
COLOR:
Black
RACK MOUNTING:
19″, 2U
Size
DEPTH:
230 mm / 9.06 inches
HEIGHT:
88 mm / 3.46 inches
WEIGHT:
5.2 kg / 11.46 lbs
WIDTH:
442 mm / 17.4 inches
Shipping informations
PACKAGE DEPTH:
330 mm / 12.99 inches
PACKAGE HEIGHT:
200 mm / 7.87 inches
PACKAGE WEIGHT:
6.6 kg / 14.55 lbs
PACKAGE WIDTH:
500 mm / 19.69 inches

Brand

RCF
