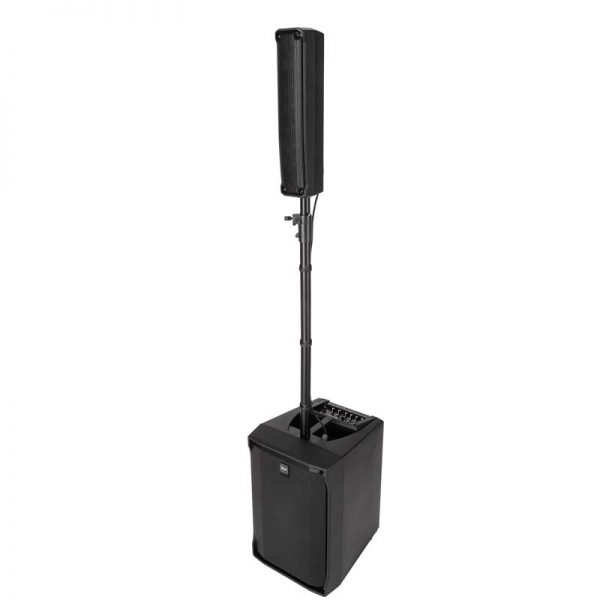

RAZGLAS RCF EVOX JMIX8

1,958.00 KM

Aktivni razglas RCF EVOX JMIX8

  • 1400 W
  • 8 IN Digital Mixer with multiple FX
  • Amp Simulator
  • Remote Control
  • 12″ LF speaker + 8 x 2″ HF speaker
  • 128 dB max SPL
  • 40 Hz – 20 kHz
  • 120˙x 30˙pattern
Kategorije: ,
  • Opis
  • Brand

Opis

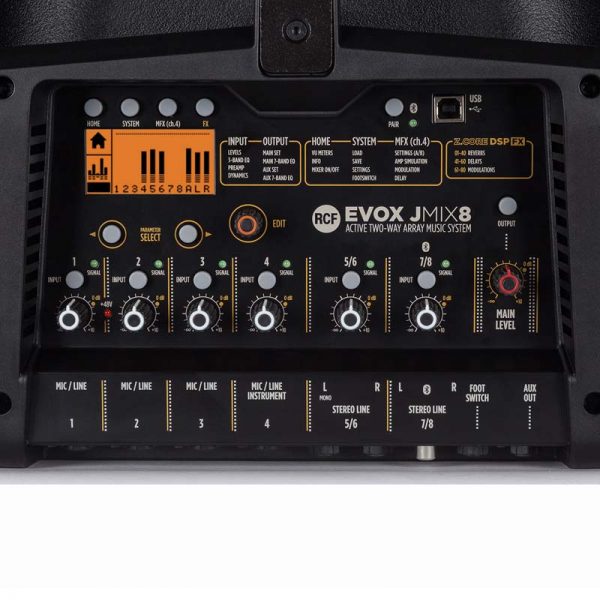

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer



SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz
HORIZONTAL COVERAGE ANGLE:
120°
MAX SPL @ 1M:
128 dB
VERTICAL COVERAGE ANGLE:
30°
Transducers
FULLRANGE:
8 x 2.0”, 1.0” v.c
WOOFER:
12”, 2.5” v.c
Input/Output section
INPUT CONNECTORS:
XLR, Jack
INPUT SENSITIVITY:
-2 dBu/+4 dBu
INPUT SIGNAL:
bal/unbal
OUTPUT CONNECTORS:
XLR
Processor section
CONTROLS:
Volume, Boost, Mic/Line
CROSSOVER FREQUENCIES:
220 Hz
LIMITER:
Soft Limiter
PROTECTIONS:
Thermal, RMS
Power section
CONNECTIONS:
VDE
COOLING:
Convection
HIGH FREQUENCIES:
400 W Peak, 200 W RMS
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
TOTAL POWER:
1400 W Peak, 700 W RMS
Electronic specifications
FREQUENCY RESPONSE:
20 Hz ÷ 20 Hz
THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
0.004
Processing
A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz
DYNAMIC RANGE:
108
PROCESSING CHANNELS:
8
SIGNAL PROCESSING:
32 Bit Floating Point
Inputs
A/D DYNAMIC RANGE (DB):
108 dB
GAIN RANGE:
0 dB ÷ 45 dB
GAIN SELECTION:
0 dB ÷ 45 dB
STEREO LINE GAIN SELECTION:
0 dB ÷ 45 dB
HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm
HI-Z LINE INPUTS:
1
MIC INPUTS IMPEDANCE (KOHM):
3 kohm
LINE:
4
LINE INPUT IMPEDANCE (KOHM):
11 kohm
LOW CUT:
20 Hz ÷ 1000 dB
MIC:
4
PHANTOM POWER +48V:
Yes
REMOTE CONTROLLED STORABLE GAIN:
Yes
STEREO LINE:
2
STEREO LINE INPUT IMPEDENCE (KOHM):
11 kohm
Outputs
AUX OUTPUT:
1
AUX SEND:
1
Outputs specifications
AUX OUT IMPEDANCE (OHM):
150 ohm
AUX OUT LEVEL (DBU):
19 dBu
D/A DYNAMIC RANGE (DB):
108 dB
MAIN OUT IMPEDANCE (OHM):
150 ohm
MAIN OUT LEVEL (DBU):
19 dBu
Compressors
RCF COMPRESSORS:
4 mono (6 preset)
EQ
DESCRIPTION:
3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency Graphic 7 Band EQ on Main Mix and AUX send.
INPUT CHANNELS EQ:
1 Semi Parametric / 2 Shelving
Auxiliary sends
AUX:
1 PRE/POST
FX POST:
1
Internal Effects
MULTIFX INSERT EFFECTS:
1
SEND EFFECTS:
1
Mastering processors
MAIN OUT PROCESSORS:
1
USB audio
PLAY TRK:
2
Other features
FOOTSWITCH:
Yes
Electrical specifications
POWER SUPPLY:
Internal
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite
COLOR:
Black
GRILLE:
Steel
HANDLES:
1 Top
Size
DEPTH:
460 mm / 18.11 inches
HEIGHT:
623 mm / 24.53 inches
WEIGHT:
22.2 kg / 48.94 lbs
WIDTH:
400 mm / 15.75 inches

Brand

RCF
